8.4" COLOR LCD RADAR

MODEL | MODEL1815


Fully Automatic Gain for Simplified Use

MODEL1815 is an 8.4” color LCD radar designed for pleasure craft and small fishing boats. The Radar has easy-to-use, intuitive controls, while maintaining the high performance you expect from FURUNO products. Even in poor visibility such as fog or storms, the radar produces detailed pictures of coastline and targets at short ranges by utilizing narrow pulses and dual IF bandwidths. The waterproof display makes it ideal for exposed installations, such as fly bridges.

MODEL1815 utilizes our Fast Target Tracking™, True Trail Mode and True View Mode technologies to ensure optimum performance in detecting and ranging targets of interest.

  • Features

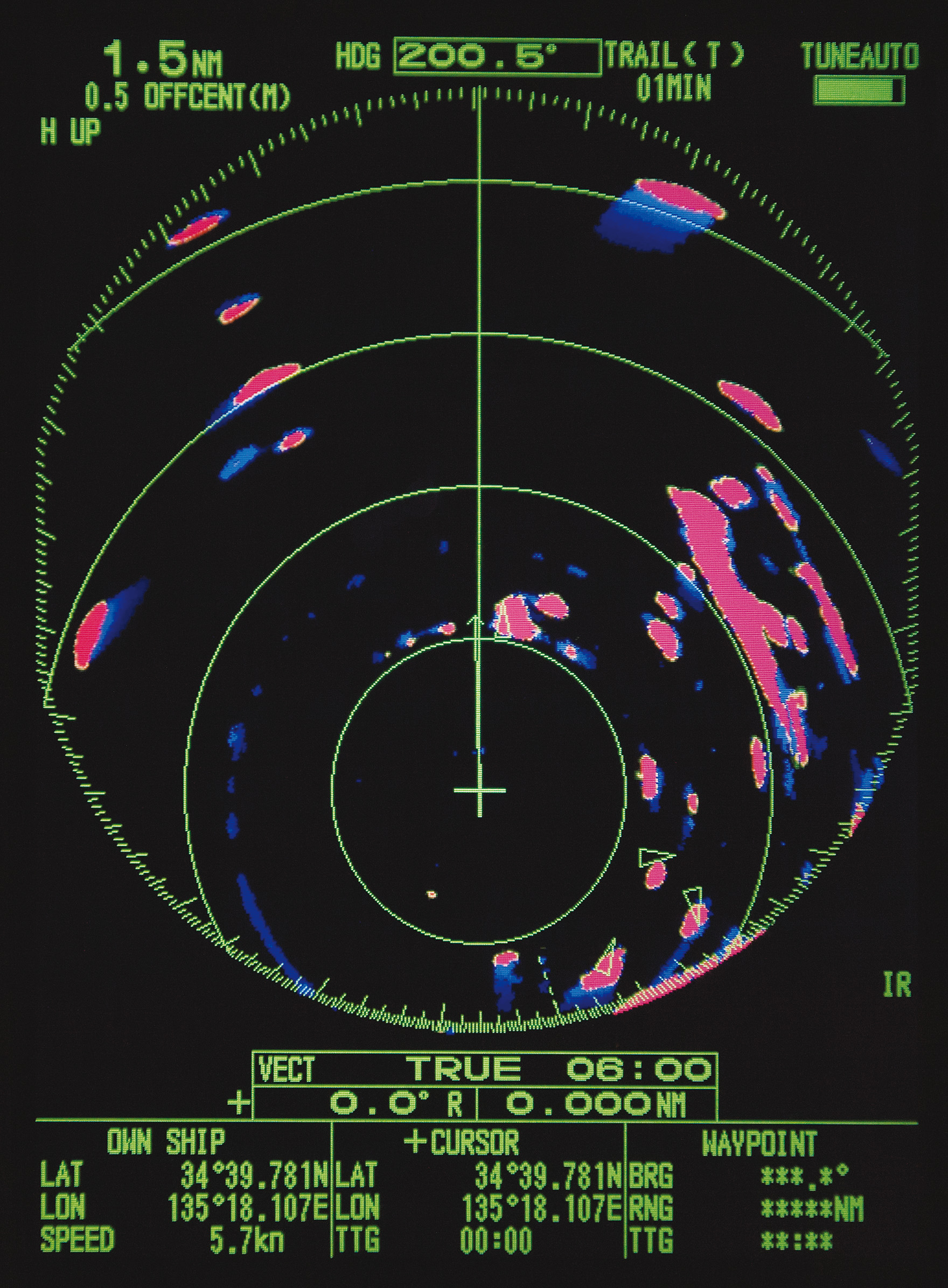

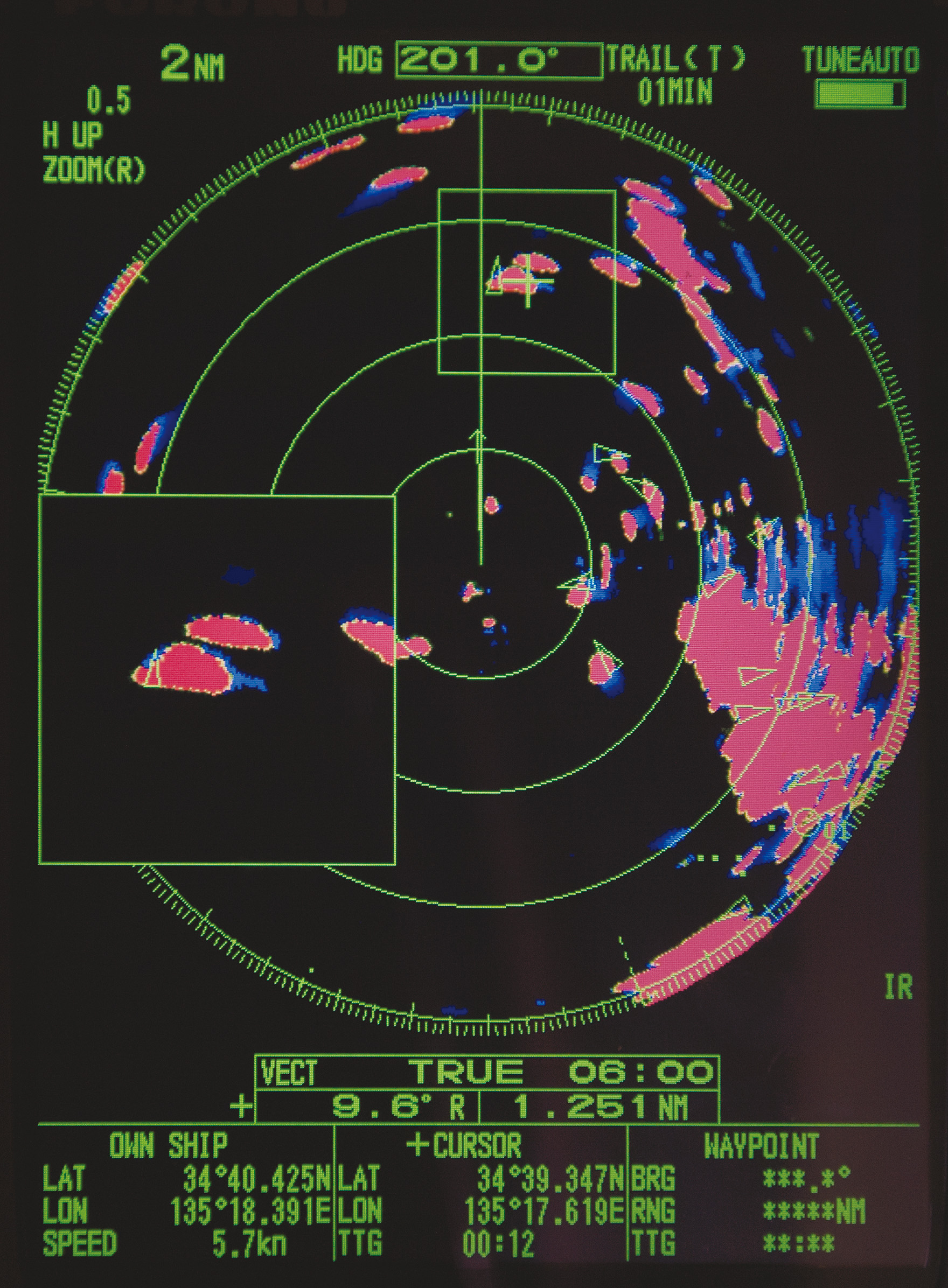

  • Screenshots
  • Specifications
  • Equipment List

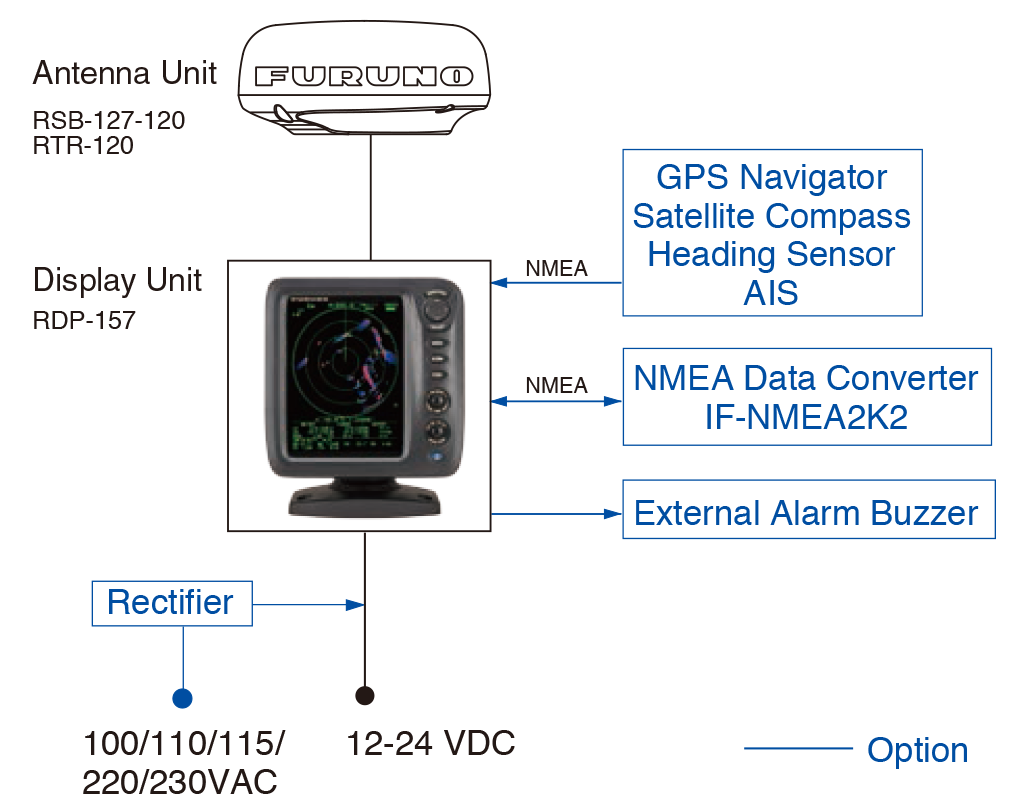

  • Interconnection Diagram
  • Downloads
  • 2Compact Radome antenna with 4 kW transmitter output power
  • Low power consumption of 38 W at the most
  • Easy installation and intuitive operation
  • Radar antenna rotation speed (24/36/48 rpm) is automatically shifted to the appropriate pulse length

    To display targets clearly and accurately, the gain must adjusted. The MODEL1815 can do this automatically for you. By automatically adjusting the gain, the Radar eliminates unnecessary echoes and display a clear image.

  • Fast Target Tracking™ (TT) function

    Fast Target TrackingTM (TT) function manually or automatically acquires and tracks 10 targets. After selecting a target, it only takes a few seconds for a speed and course vector to be displaed. With accurate tracking information, estimation of other vessel's course and speed is made easier.

  • AIS display

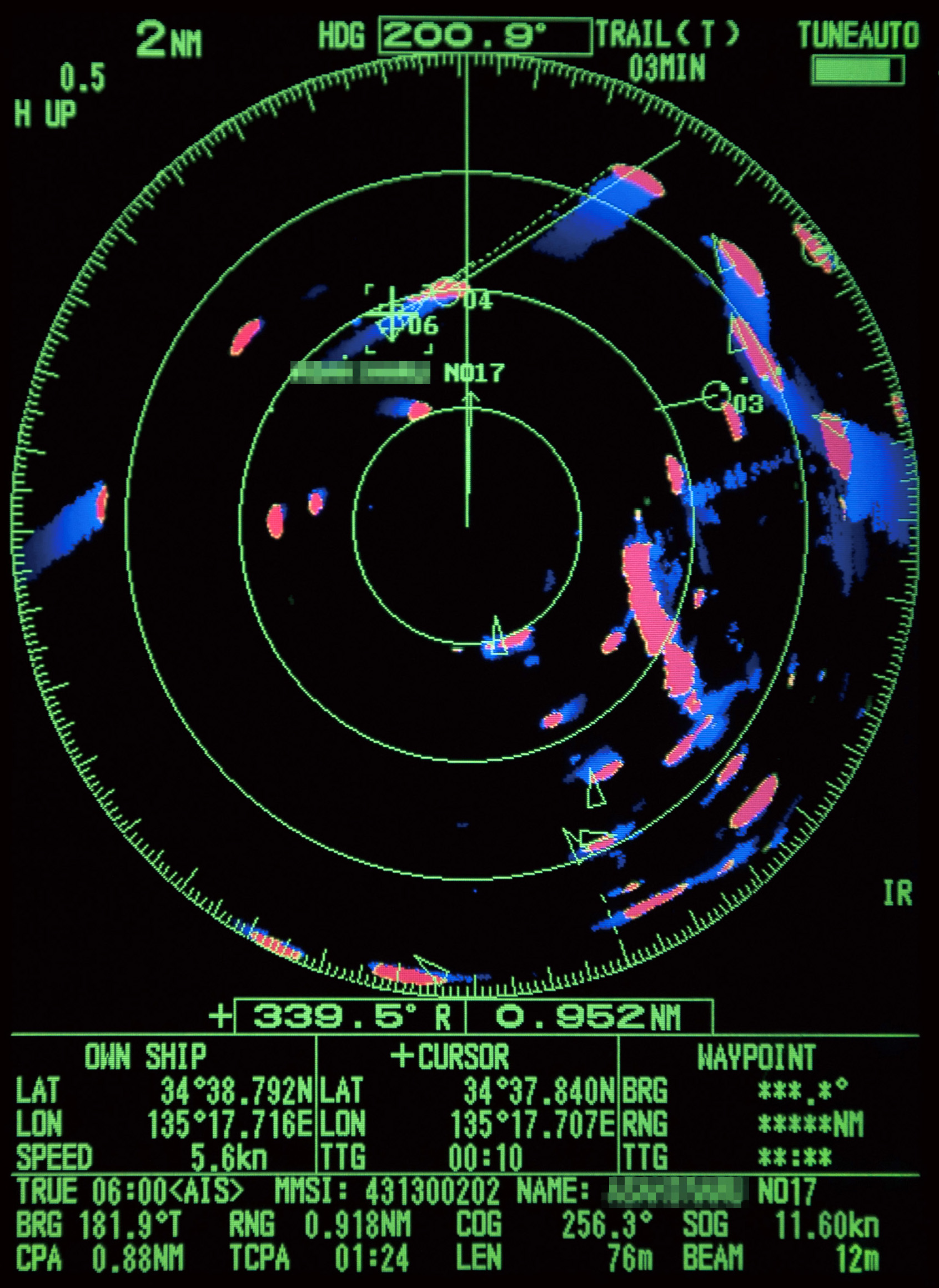

    When connecting a FURUNO FA-30/50 AIS unit, up to 100 AIS targets can be tracked and displayed on the Radar screen. The AIS improves safety during travel by sharing the status and position of your vessel with other AIS-equipped vessels nearby. You can easily read detailed information about other AIS equipped vessels nearby, such as speed and heading.

    PSU-013 Power Supply Unit included as standard supply
  • True Trail mode

    When using the True Trail mode, moving objects will show up on the main screen with a gradational trail. These trails make it possible to see the movement of nearby vessels in the blink of an eye.

    * Heading data and positional data are required.
  • True view mode
  • User-programmable function key
  • Swivel mounting bracket to adjust the angle of the display unit
  • Multi-station configuration/span>

    The multi-station configuration allows up to three RDP-157 (MODEL1815 displays) to be connected to a single antenna, via an ethernet hub, without the need to install individual antenna units on each display. This configuration provides a cost saving and dynamic setup for situations requiring the ability to monitor the Radar from different locations on the ship.

Dual display 1

Dual Display 2

Dual Display 3

Dual Display 4

ANTENNA
Peak Output Power:
4 kW

Type
488 mm (19") radome

Frequency:
9410 MHz ± 30 MHz

Beam Width (Horizontal):
5.2°

Beam Width (Vertical):
25°

Range Scales:
0.0625 - 36 NM

Minimum Range:
25 m

Antenna Rotation Speed:
24 rpm

Weight:
6.5 kg 14.3 lb

DISPLAY

Display Unit:
8.4" color LCD

Display Mode:
Head-up, Course-up*, North-up*, True view, True motion**
* Heading data required
** Heading data and position data required

Other Mode / Functions:
Fast Target Tracking™ (TT), AIS, Echo Trails

Other Mode / Functions:
Bracket mount: 2.2 kg 4.9 lb
Flush mount: 1.6 kg 3.5 lb

ENVIRONMENT

Temperature:
Antenna unit :-25°C to +55°C
Display unit: -15°C to +55°C

Waterproofing:
Antenna unit: IPX6
Display unit: IP56

POWER SUPPLY

Power Supply / Consumption Current:
12-24 VDC, 3.2-1.6 A

Standard

Display Unit: RDP-157
Antenna Unit: RSB-127-120
Antenna Cable: 10/15/20/30 m specify when ordering
Power Cable: 3.3M
Spare Parts & Installation Materials

Option

Antenna Bracket: OP03-209
External Buzzer: OP03-21
NMEA Data Converter: IF-NMEA2K2
Flush Mount Kit
